RF Waveguide Isolated Precision Component
Manufacturing Technology: CNC Milling, CNC Machining.
Industry: RF Waveguide isolated.
Material: Aluminium 6061 T6.
Surface Finish: Nickel plated.
* Please kindly note we do custom parts manufacturing only, all the products shown in the pictures are for quality reference only but not for sell. If you have any part needing custom manufacturing, please just let us know. Thank you! *
Product Details

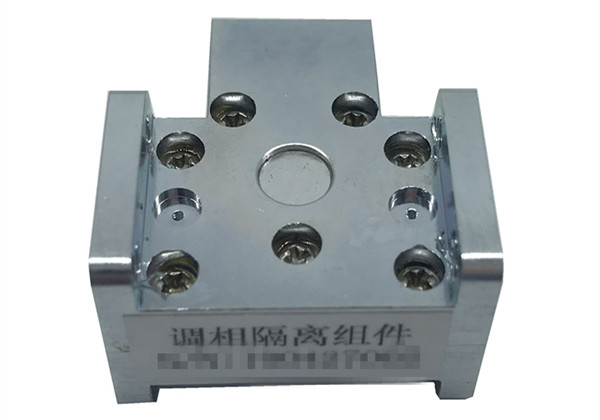

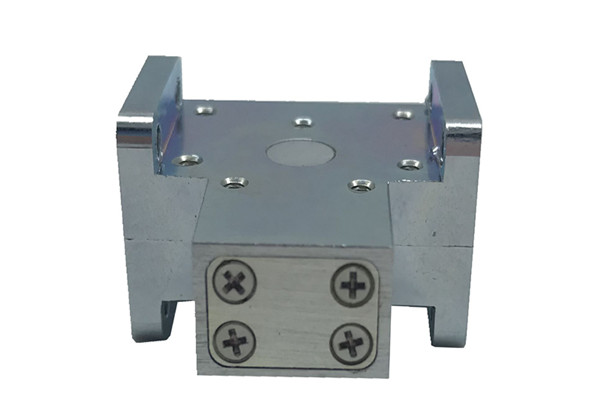

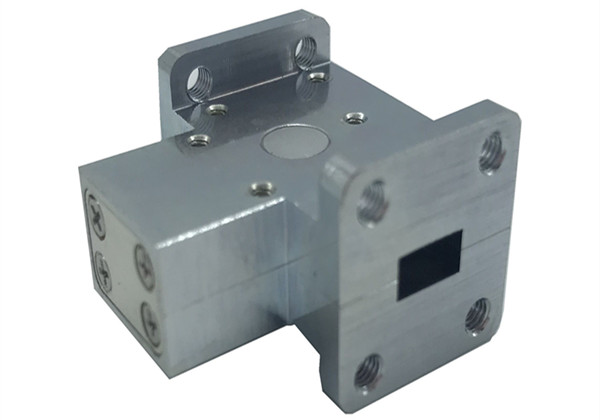

This is a custom made RF Waveguide isolated precision component.
Material: aluminum 6061- T6,
Surface finish: Nickel plated,
Process: CNC milling, assembling
What is Isolators?
Isolators and circulators are the same type of microwave ferrite device, and the transmission of microwave signals is controlled by the ferrite. Due to its non-reciprocity, the forward insertion loss is small, while in the reverse direction, most of the energy is absorbed. The circulator and isolator rely on a magnetic field to complete non-reciprocal work. However, only a magnetic field and no microwave ferrite also can transmit microwave signals. The microwave ferrite in the device determines its resonance frequency.
CNC milling processing is one kind of our most experienced machining processing. It can process the parts with very complex shape and difficult to control size. It even can process the part with complex curves and three- dimension curved surface parts. And it also can reach high precision requirement.
Our CNC milling process produces custom prototypes and end-use production parts as your required. We use 3-axis, 4-axis and 5-axis milling processes to manufacture parts from more than 20 different materials from woods, plastics to metals.
100% Quality Assurance program taken by best-in-class inspection equipment, rigorous QC team and meticulous QC process. Material analysis report and component quality testing report as per customer’s specific requirements.
That’s why we can meet the demands from global 1000+ customers in 30+ industries.
Contact us to see how we can provide overall value to your CNC machining needs. Or send your RFQs to sales@domachining.com directly, PDF drawings, step, iges, dxf and dwg files are all available for us.
